Description

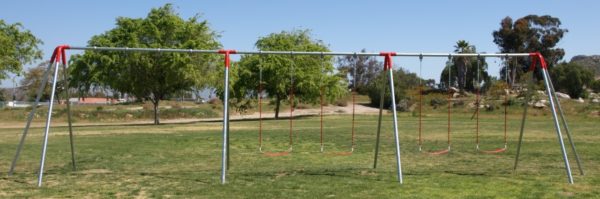

Bring heavy-duty fun to your playground with the Jensen Swing H106—a robust 10′ high, 3-bay swing frame designed for six swings. Engineered for both commercial and residential use, this set safely accommodates children ages 4–12 following ASTM and CPSC guidelines.
Built to withstand tough conditions, the H106 frame is designed for in-ground installation with high-quality steel components and durable powder-coated finish. With proper installation, it can last 2 years in harsh conditions and up to 5 years in optimal conditions.
The frame requires assembly with common tools and concrete for secure anchoring. Protective surfacing and proper supervision are essential to ensure safe play.
Key Features
- Heavy-Duty Construction: Strong steel frame for commercial and residential use
- Three-Bay Design: Supports 6 swing seats simultaneously
- Height: 10′ high for safe, elevated swinging
- Age Range: Recommended for children 4–12 years old
- Durability: Lasts 2–5 years depending on conditions
- Customizable Colors: Choose from a range for end frames, middle frames, chains, and swing seats
- Safety Compliant: Designed to meet ASTM and CPSC guidelines
-
Maintenance-Friendly: Easy access for inspection, greasing, and replacement of parts
Specification
| Specification | Details |
|---|---|
| Model | H106 |
| Frame Height | 10′ |
| Number of Swings | 6 |
| Number of Bays | 3 |
| Material | Heavy-duty steel, powder-coated |
| Age Range | 4–12 years |
| Weight (lbs) | 787 |
| Shipping Dimensions (in) | 149 × 22 × 23 |
| Installation Type | In-ground with concrete |
| Lifespan | 2 years in harsh conditions; 5 years optimal |
| Compliance | ASTM and CPSC safety standards |
Installation & Maintenance
- Adult supervision required at all times
- Designed for one child per swing seat
- Ensure protective surfacing under swing set (ASTM F1292 compliant)
- Regular inspection: check for loose screws, rust, damaged parts, and worn chains
- Avoid standing on swings or using when wet
- Replace parts immediately if damaged
What’s Included
- EFF3 – 2 green or red end frame fittings
- MFF3 – 2 green or red middle frame fittings
- SH114 – 12 shackles
- H170 – 12 shackles
- H175 – 1 Allen wrench for shackles
- S130 – 6 swing seats (black, blue, green, red, tan, or yellow)
- C125 – 12 color options (blue, green, red, yellow)
- Pipe Legs A – B – 4 pieces, 12′6″
- Pipe Middle End Legs AA – 2 pieces, 12′6″
- Pipe Middle Legs C – D – 4 pieces, 12′6″
-
Top Rail 10′ – 3 rails
Parts Diagram & Dimensions
| Part / Section | Quantity | Color Options | Dimensions / Notes |
|---|---|---|---|
| Front & Back Legs (A & B) | 2 each | N/A | 110″ apart above ground, 128″ below ground |
| Middle Legs (AA) | 2 | N/A | Legs furthest apart, 460″ center-to-center lengthwise |
| Front Leg (A) to Middle Leg (AA) | N/A | N/A | 72.5″ apart above ground |
| Front Leg (A) to Middle Front Leg (C) | N/A | N/A | 126″ apart above ground |
| Top Rails | 3 | N/A | 10′ long each |
| End Frame Fittings (EFF3) | 2 | Green or Red | Attach to ends of top rails |
| Middle Frame Fittings (MFF3) | 2 | Green or Red | Connects middle top rails |
| Swing Seats (S130) | 6 | Black, Blue, Green, Red, Tan, Yellow | Single-child swing seats |
| Shackles (SH114 / H170 / H175) | 25 total | N/A | For attaching swing chains to top rails |
| Pipe Legs (A–B) | 4 | N/A | 12′6″ long |
| Pipe Middle End Legs (AA) | 2 | N/A | 12′6″ long |
| Pipe Middle Legs (C–D) | 4 | N/A | 12′6″ long |
| Chain & Swing Hangers | 6 sets | N/A | Space 2′ from ends, 2′ apart each |
About Jensen Swing Products Inc.
Founded in 1946, Jensen Swing Products Inc. is recognized as one of the world’s largest wholesale suppliers of playground equipment, known for a legacy of innovation, safety, and durability. Products are engineered to meet the highest safety standards and built from premium materials to endure years of active use.
Swing frames and hardware exposed to harsh weather are galvanized by electroplating to resist rust, while moving parts are either self-lubricating or designed for easy maintenance. Jensen also offers safety-focused solutions, including special chains for young and handicapped children and reinforced swing seats to deter vandalism.
Every product undergoes thorough field testing to ensure safety and performance. Backed by a one-year guarantee against defects in materials and workmanship, Jensen Swing Products continues to set the benchmark for commercial playground equipment worldwide.
